SPECIFICATIONS

Brand Name: Estardyn

Choice: yes

Display Mode: 128*64

High-concerned chemical: None

Model Number: 1.3 inch OLED module

Origin: Mainland China

Resolution: 128*64

Type: Character

is_customized: Yes

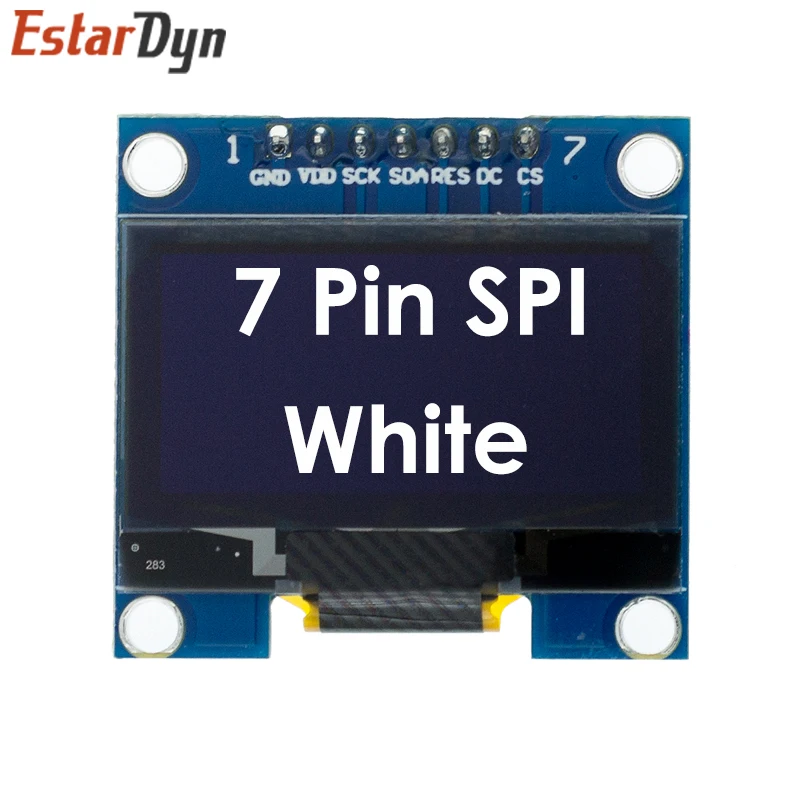

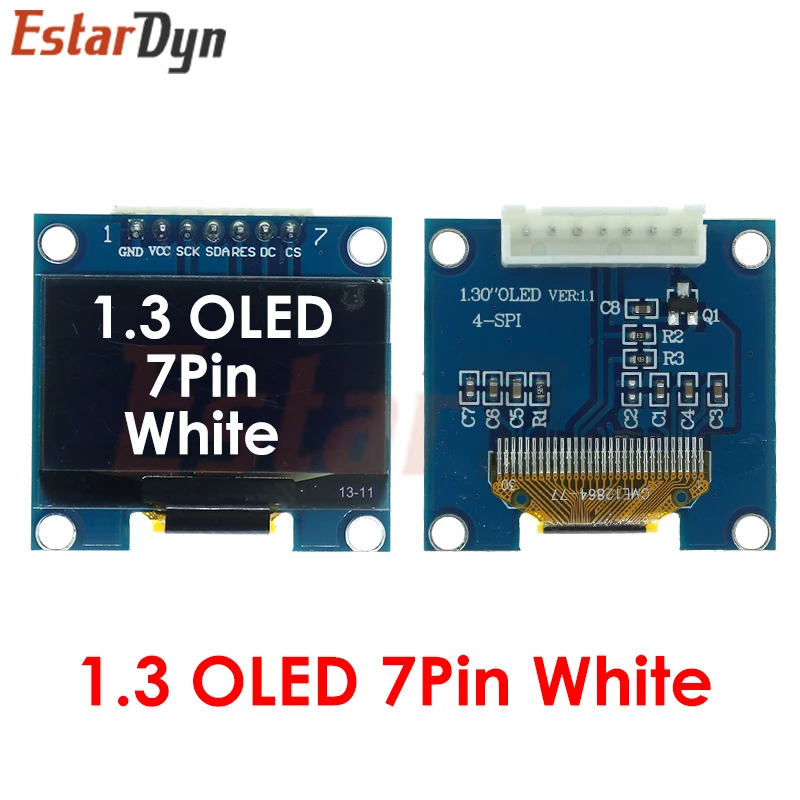

1.3 inch OLED 7 Pin

Driver chip SH1106
Support interface SPI
Resolution 128×64
Display size 1.3 inches
Display color: white/blue/
Dimensions 35.5X33.7X1.2(mm)
Glass size 34.5X23X1.45(mm)
Display area 29.42X14.7(mm)
Positive and negative tolerance 0.2mm
Number of needles 7 needles
Viewing angle >160°
Working temperature -40℃~80℃
Storage temperature -45℃~85℃
Working voltage 3.3V / 5V

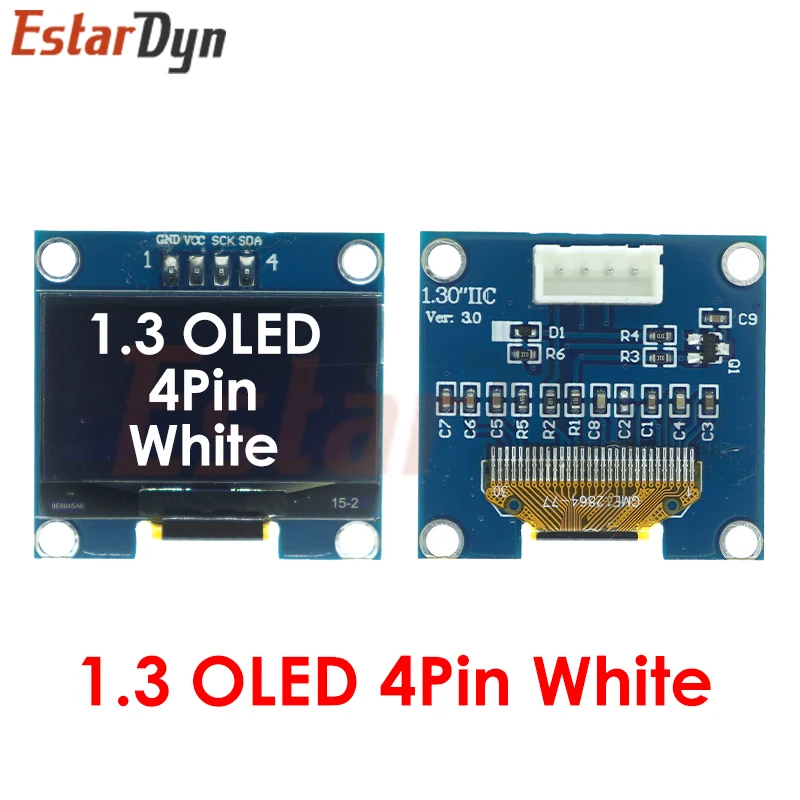

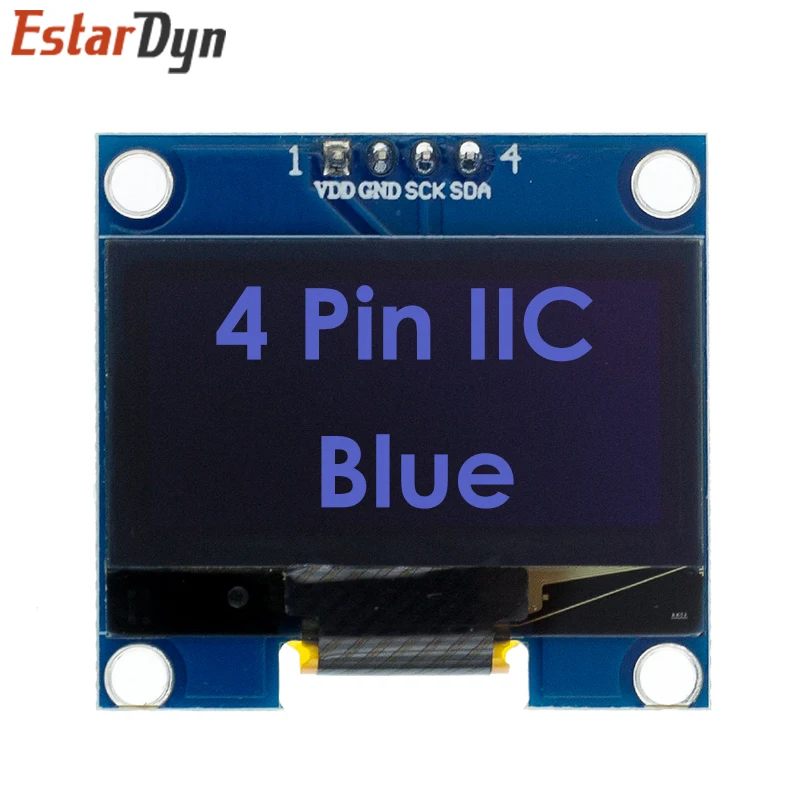

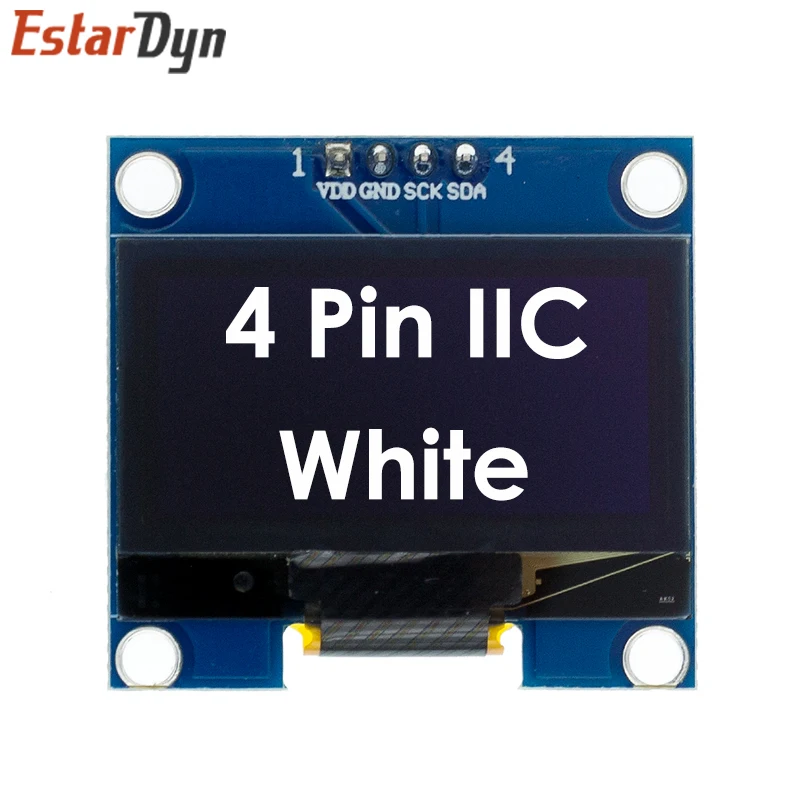

1.3 inch OLED 4 Pin

Driver chip SH1106
Support interface IIC
Resolution 128×64
Display size 1.3 inches
Display color: white/blue
Dimensions 35.5X33.7X1.2(mm)
Glass size 34.5X23X1.45(mm)
Display area 29.42X14.7(mm)
Positive and negative tolerance 0.2mm
Number of needles 4 needles
Viewing angle >160°
Working temperature -40℃~80℃
Storage temperature -45℃~85℃
Working voltage 3.3V / 5V
