SPECIFICATIONS
AC Current: 600uA/6000uA/60mA/600mA/10A
AC Voltage: 600mV/6V/60V/600V/1000V
Auto Power Off: yes
Back Light: yes
Battery Included: Yes
Brand Name: ANENG
Certification: CE
Choice: yes
Color: Red/Green
Continuity: yes
DC Current: 600uA/6000uA/60mA/600mA/10A
DC Voltage: 600mV/6V/60V/600V/1000V
DIY Supplies: Electrical
Date Hold: yes
Dimensions: 26 x 17 x 6 cm
Diode: yes
Display Type: Digital Display
Display(LCD): 19999 counts
High-concerned chemical: None
Is Smart Device: No
Low Battery Alect: yes
MAX/MIN: yes
Measuring Capacitance Range: 10nF/100nF/1uF/10uF/100uF/1000uF/10000uF
Measuring Inductance Range: no
Measuring Resistance Range: 600/6k /60k /600k /6M /60M
Meterial: ABS
Model: AN870
Model Number: 870 Digital Multimeter
NCV: yes
Operating Mode: Manual Range
Operating Temperature: 0 – 40 ℃
Origin: Mainland China
Ranging: Auto/Manual
Relative Measurement: yes
Ture RMS: yes
Update Rate: 3Time/Second

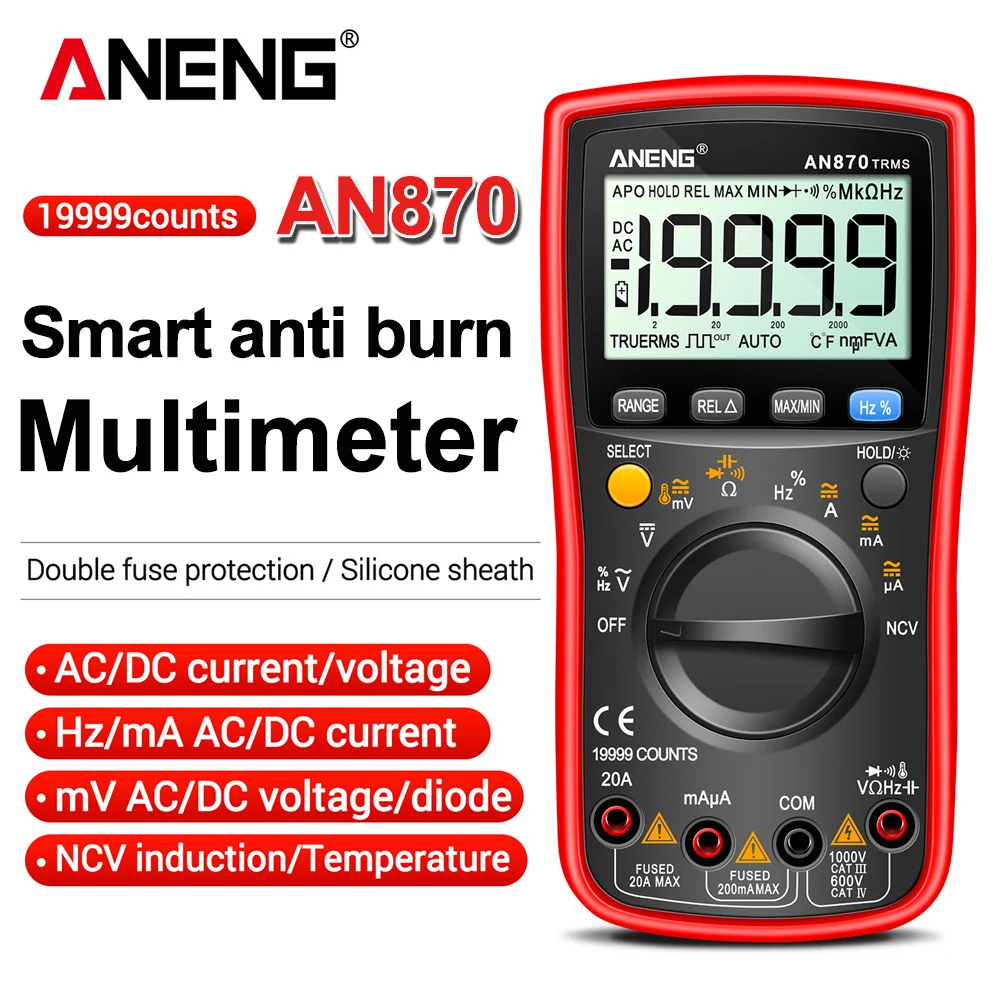

Smart Multimeter Digital Profesional 19999 Counts AC Voltage Tester Current NCV Capacitance Resistance Ohm Test Tool
Feature:
A. Introduction

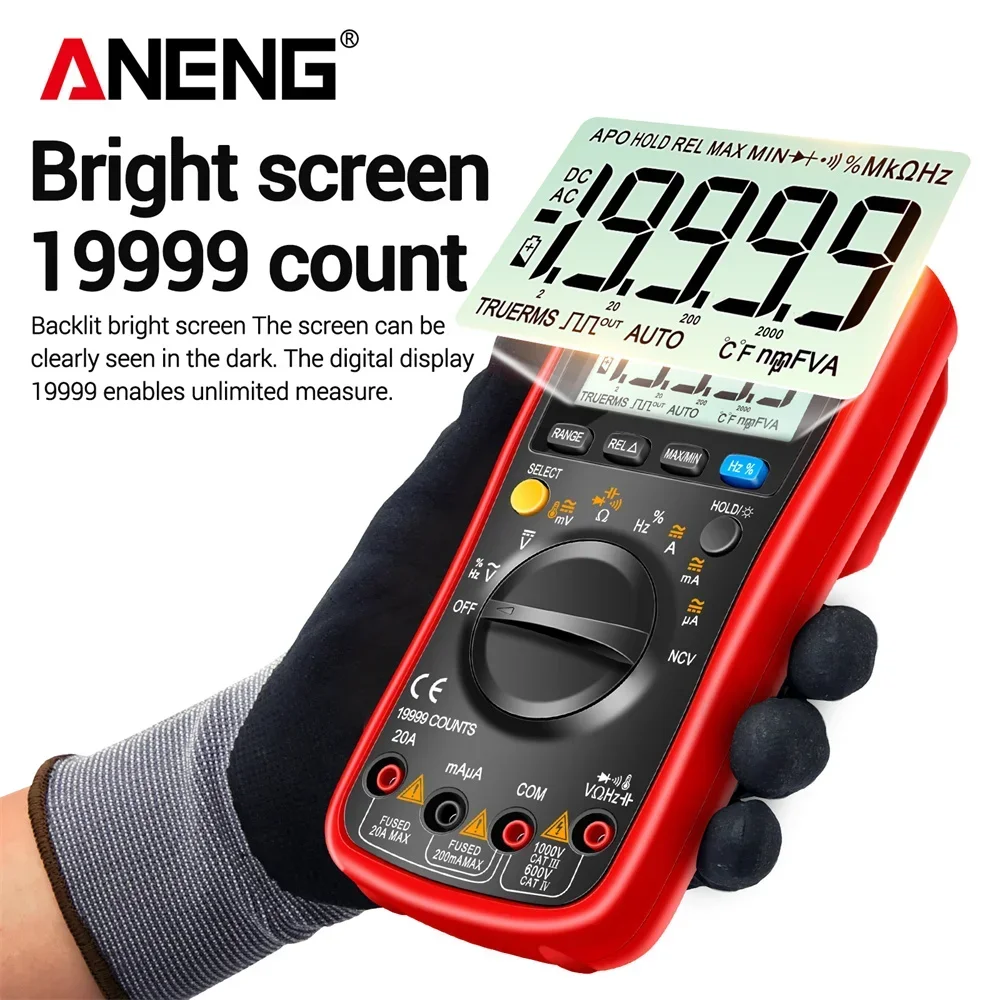

This product is a battery-powered, true-rms, auto-ranging digital multimeter with a 19999 LCD display and a backlight.
B. Specification
Brand Name | ANENG | Model | AN870 |
Display(LCD) | 19999counts | Ranging | Auto/Manual |
Meterial | ABS | Update Rate | 3Time/Second |
Ture RMS | yes | Back Light | yes |
Date Hold | yes | Relative Measurement | yes |
MAX/MIN | yes | Low Battery Alect | yes |
Auto Power Off | yes | Diode | yes |
Continuity | yes | NCV | yes |
Function | Range | Accuracy |
DC Voltage | 19.999mV/199.99mV/1.9999V/19.999V/199.99V/1000V | ±(0.05％+ 3) |
AC Voltage | 19.999mV/199.99mV/1.9999V/19.999V/199.99V/750V | ±(0.3％+ 3) |
DC Current | 1.9999A /19.999A / 19.999mA /199.99mA /99.99μA /1999.9μA | ±(0.5%+3) |
AC Current | 1.9999A /19.999A / 19.999mA /199.99mA /99.99μA /1999.9μA | ±(0.8%+3) |
Resistance | 199.99Ω | ±(0.5%+3) |
1.9999kΩ/19.999kΩ/199.99kΩ | ±(0.2%+3) | |
1.9999MΩ/19.999MΩ | ±(1.0%+3) | |
199.99MΩ | ±(5.0%+5) | |
Capacitance | 9.999nF | ±(5.0%+20) |
99.99nF/999.9nF/9.999uF/99.99uF/999.9uF | ±(2.0%+5) | |
9.999mF | ±(5.0%+5) | |
Frequency | 99.99Hz/ 999.9Hz/ 9.999kHz/ 99.99kHz/ 999.9kHz/ 9.999MHz | ±(1.0%+2) |
Duty Cycle | 1%~99% | ±(1.0%+2) |

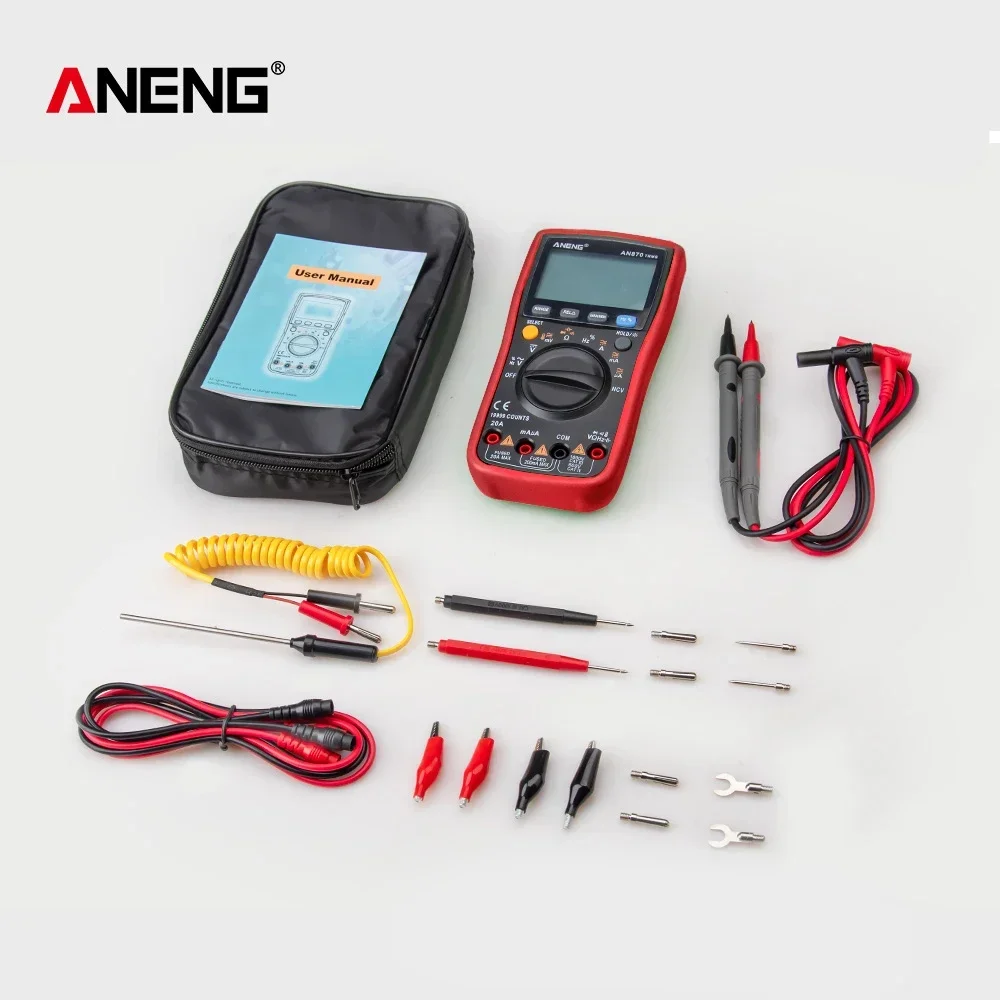

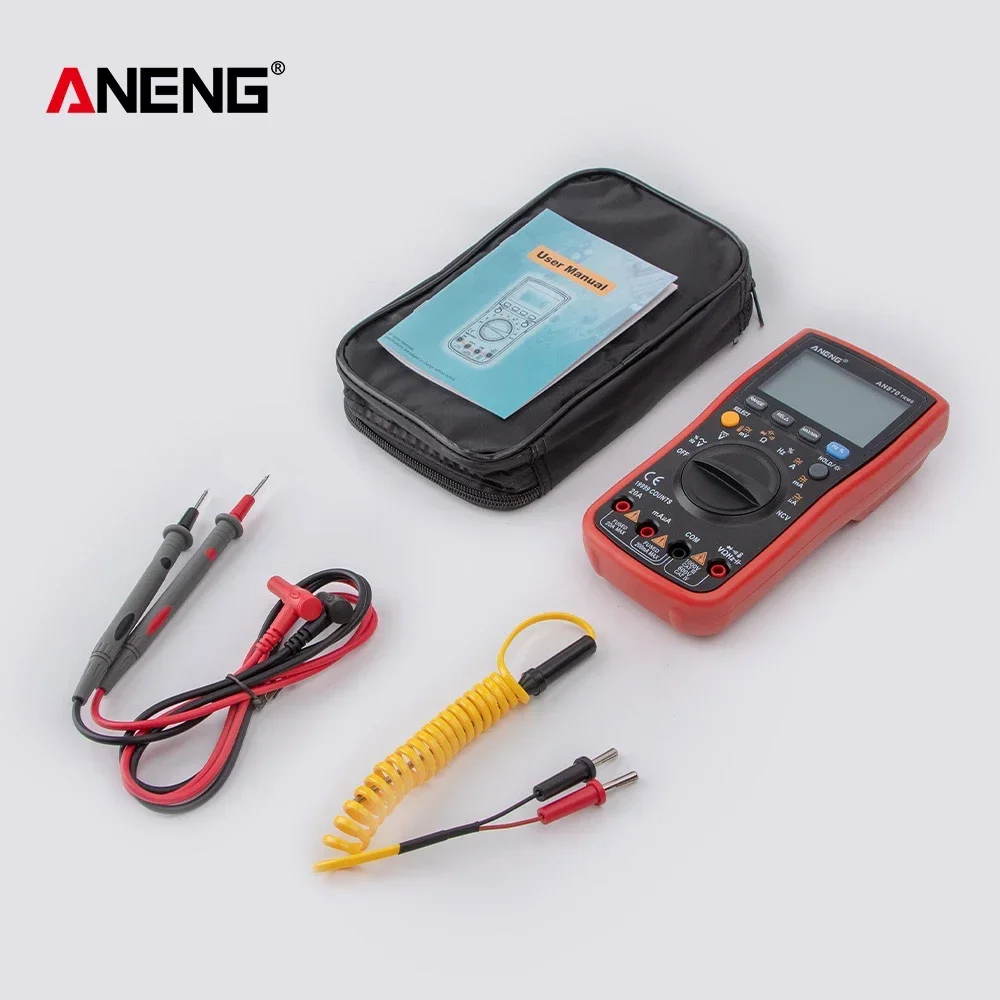

Packaging:(Not including battery)
as the picture showed
Warning:
1. Do NOT exceed the "maximum value" indicated in the Specification;
2. Do NOT input voltage at the Current Mode, the Resistance Mode, the Diode Mode, the Continuity Mode, or the Temperature Mode;
3. Do NOT use the product when the batteries or the battery cover is not placed properly;
4. Turn off the product and remove the test leads from the test points before changing batteries or fuses.
